AT-RISC Processor

Table of Contents

AT-RISC Processor Motivations.

For many years I have wanted to make my own processor, not just in Verilog but a physical, breadboard or PCB processor.

After previously simulating a SAP-1 processor on Logisim, I have become keen to make a more advanced “toy” processor. This is where AT-RISC comes in.

AT-RISC is a fun play on my initials (AT) and the term RISC, which stands for Reduced Instruction Set Computer. I sometimes end the AT-RISC title with 16, to show that it is a 16-bit processor.

Inspirations

I have a whole load of inspirations for this processor, but I will list the main few.

Ben Eater - One of the Homebrew Processor icons, at least on YouTube, his SAP series was the first one I got really invested in, I spent many years trying to find an affordable physical copy of Malvino & Brown’s - Digital Computer Electronics which is the book he based a lot of his designs from.

Fabian Schuiki - Has an impressive YouTube series on his superscalar processor. He is actually an Engineer at SiFive which I also find very interesting.

DipDot - Has build a gorgeous relay processor, I am a really big fan of his backplane design, however I do not plan on using a similar design.

James Sharman - Has an unbelievably underrated and long running series on his jam-1 processor, I am heavily inspired by his PCB layout design. As well as his work on IO for his processor.

My Specification

There is no point in setting too much in stone as fas as the design at the moment, however there are some key ideas I wish to follow.

RV32I Style Instructions - I am very keen on making the instructions set practically the same as RV32I, of course I will not be following the structure 1:1.

RISC Style Pipeline - Classic RISC pipelines are split into 5 stages Fetch, Decode, Execute, Memory, Writeback, I intend on following this pipeline style.

TTL Style Components - This one is pretty obvious. Using as many 74 series chips as possible.

PCB Based Design - Modularising the deign as much as possible, via a bunch of PCBs on a series of backplanes. I refer to Fabian Schuiki and James Sharmans designs.

Architecture

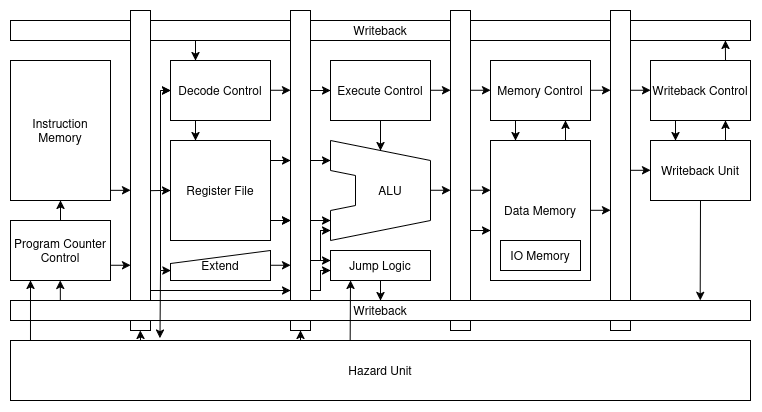

I won’t go into too much detail, but I will include my current sketch of the processor architecture. As previously stated it will follow a RISC-Style pipeline.

Architecture

It is worth noting that this diagram is incomplete and will evolve as this project grows.

Build process

The build process for this project will aim to follow the following steps

  1. Conceptualisation

    • Come up with module idea, goals, and design limitations.

  2. Verilog design

    • Write the module in Verilog with a test suite.

  3. Breadboard Design

    • Produce on breadboard if possible, Some stuff will not be feasible to make, due to the 16-bit word size.

  4. Schematic Design

    • Produce Detailed Schematics

  5. PCB Layout

    • Produce PCB, using SMD components and pin headers.

  6. Test using Verilog Test Suite

    • Using a FPGA to test the modules, as well as testing module clock speeds

  7. Write up!

    • Write a blog post about it, and also document my design.
